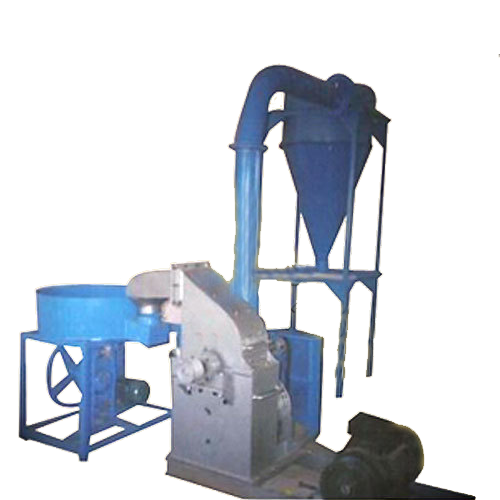

Auto Suction Hammer Mills

Auto Suction Hammer Mills

We offer customers automatic suction hammer mill that comes in capacity ranging from 6 H.P. To 85 H.P. Available under the brand name 'techno wings' these automatic machines maintain due to continuity flow through automatic suction through motor. Further, the ampere of motor doesn't fluctuate, hence increasing the working capacity of machine. The basic principle is straight forward. A hammer-mill is essentially a steel drum containing a horizontal rotating shaft or drum on which hammers / blade are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars / blade and is thereby shredded and expelled through screens in the drum of a selected size.

0 reviews / Write a review

Get A Quote
Request Callback

Description

Power
7.5 HP
Capacity
280 kg per hr
Material
Steel
Automation Grade
Automatic
Speed
3500 rpm
Phase
Three Phase
Brand
Jas
Country of Origin
Made in India

Construction of Auto Suction Hammer Mill

Rotary feeder is supplied with gear box. The Techno Wings hammer mills comprises of a heavy duty Mild Steel fabricated body (alternatively stainless steel construction can be provided in hammer mill wherever necessary). The grinding chamber of hammer mill is lined with serrated wear plates, which protects the body from wear and tear. A dynamically balanced rotor in hammer mill with a set of swing hammers accelerates the grinding process. The screen classifier forms the lower half of the grinding chamber of hammer mill. The blower in hammer mill is driven on a separate shaft with the help of a ‘v’ belt adjustable driven from the rotor shaft.

Auto suction Hammer Mill crush/grind/pulverize in various applications

The Techno wings Hammer Mills can be used for a wide range of application e.g. Animal & Poultry Feeds, Chemicals, Food Products, Herbs & Spices like read chilies, Black pepper , White pepper, Cinnamon, Cardamom, Coriander, Red pepper, Oregano, Basil, Thyme, dill seed, shell corn, Marine Feeds, Molding Powders, Dry Soap, Charcoal, Tea, Coffee, et cetera

Outstanding Features of Auto suction Hammer Mill

  • Less operating cost due to automatic feeding
  • Easy to change screens in a variety of sizes
  • Four-way reversible hammers / blades
  • Hinged door for easy access to hammer mill interior
  • Cold & silent running
  • Dust free operations
  • Robust Construction
  • Low Specific Power Consumption
  • Durable Long Life
  • Low Temperature Rise for Heat Sensitive Materials

Standard Accessories of Auto Feed Hammer Mill

  • Motor pulley
  • Cotton balloon
  • Anti-vibrating foundation Stand with adjustable rail for motor
  • 3 numbers of perforated round hole screens

Extra Accessories of Auto Feed Hammer Mill

  • Suitable totally enclosed fan cooled three phase or single phase Sq. cage motor {Electricity (Special power can be accommodated): 110/220/380/415 Volts, 50/60 Hz, 1/3 Phase }
  • Suitable miniature circuit breaker with 3 meter cable & 3 pin top for single phase electric motors
  • Starters, main switch, ampere meter, capacitor for single phase electric motor
  • Foundation bolts
  • V Belts
  • Magnetic hopper
  • All contacting parts Stainless steel 304 / 316 can be accommodated
