Description

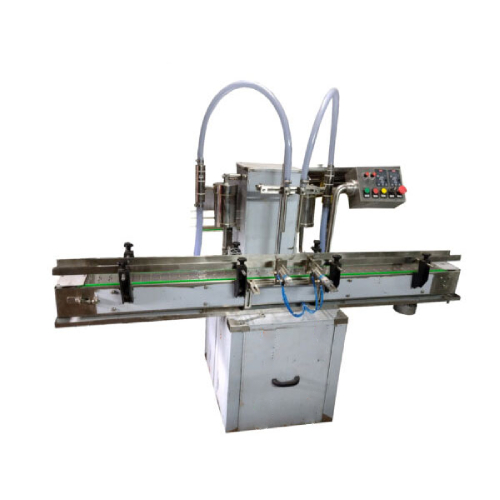

Application of Automatic Two Head mechanical Filling Machine

• Any type of liquid.
• Pharmaceuticals.
• Juice.
• Food Industries.
• liquor.
• Oil.
• Pesticides.
• Distillery etc.

Features of Automatic Two Head mechanical Filling Machine

• ±1 % Filling accuracy on single dose.
• No Bottle No Filling System.
• All Contact Parts made of S.S.316.
• Rigid vibration free construction for trouble free performance.
• S.S. Elegantly matt finished body.
• Minimum charge overtime, from one size to another container or fill size.
• Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction wear surface, smooth and noiseless conveying.
• Bottle Stopping arrangement through Pneumatic system.
• Synchronized two nos. A/c drives for main motor & conveyor belt.
• Safety guard for conveyor gearbox, motor and pneumatic cylinders.

Specification of Automatic Two Head mechanical Filling Machine

• Filling Range*** :- 50 ml to 1000 ml.
• Output/Hour* :- 1200 to 2400*.
• Direction of Movement :- Left to Right.
• Number Of Head / Syringe :- 2 Nos.
• Main Machine :- 1 HP / 415 V / 50 HZ.
• Conveyor :- 0.5 HP / 415 V / 50 HZ.
• Power Supply :- Single Phase
