Operating Principle of pulses & grains grinder
Indian Machine Mart pulses & grains grinder are durable utility grinders capable of grinding most pulses and grains. The Techno Wings multipurpose pulses & grains grinder comprises of a heavy duty aluminum body (alternatively stainless steel construction can be provided in multipurpose pulses & Grains grinder wherever necessary). Multipurpose pulses & Grains grinder operate on the principle that most materials will grind or crush upon impact with the hammers. The material is feed into a multipurpose pulses & Grains grinder from the top back through an gravity into the grinding chamber. The grinding chamber of multipurpose pulses & Grains grinder is lined with serrated wear plates, which protects the body from wear and tear. Design provides for admitting extra air during grinding to facilitate cool operation. Soft to medium hard materials are quickly pulverized to fine powder. Improved mixing and dispersion are added advantages of such mills. Quite popularly, it is also called high speed close tolerance multipurpose grinding mills. Uniformly fed material undergoes a complex grinding force through attrition between liner plate & hammer tip, impact of high speed hammers and collision between particles. Bottom sieve controls the particle size.
Construction of pulses & Grains grinder

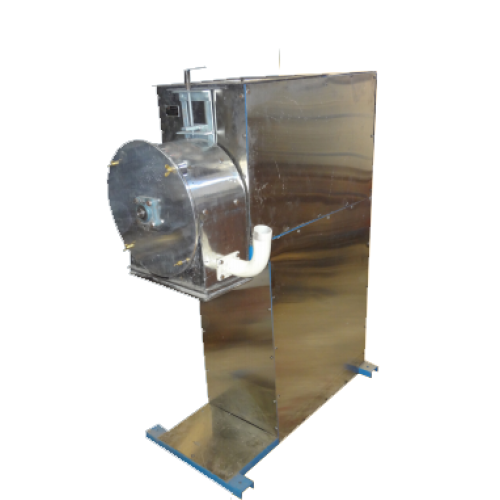

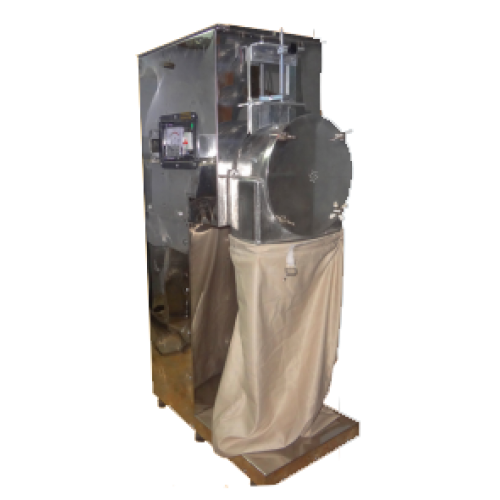

Pulses & Grains grinder is Made from heavy duty Mild Steel fabricated body. Heavy duty iron body is covered with stainless steel sheet. Aluminum Grinding Chamber lined with serrated wear Steel plates, which protects the body from wear and tear. Grinding done by a set of fixed blades or Hammers on a balanced rotor. A screen classifier forms the lower half of the grinding chamber.
Typical Application of pulses and Grains grinder
The Techno wings pulses & Grains grinder can be used for a wide range of application e.g. Gram dal, Udad dal, Moth dal, Moong dal, and many more... Rice, Maize, Jowar, durra, Bajri, Ragi, Wheat grits, Maize grits and many more et cetera
Outstanding Features of pulses and Grains grinder
- Narrow band Particle Size Powder Distribution
- Low Power Consumption and Maintenance
- Minimum handling of material to avoid product loss
- Available in Stainless Steel Contact Parts and Stainless Steel Grade
- Equipment available for Dustless Environment
- Can handle Heat Sensitive and Hygroscopic Material
- Full Fledge Trial Test Facility Available
Standard Accessories of herbs & Spice grinder
- Two Numbers Cotton Balloons.
- Three Sets of perforated round holes Screens.
- One Numbers of Ampere Meter
- Suitable totally enclosed fan cooled three phase or Single Phase Squirrel cage motor {Electricity (Special power can be accommodated): 220/380/415 Volts, 50/60 Hz , 1/3 Phase }
- Three meter three core cable Suitable miniature circuit breaker with 3 pin top as per for single Phase Electric Motors or Three meter four core cable with Suitable starter for Three Phase Electric Motors.
Extra Accessories of herbs & Spice grinder
- Magnetic Hopper
- All contacting parts Stainless steel 304 / 316 can be accommodated
